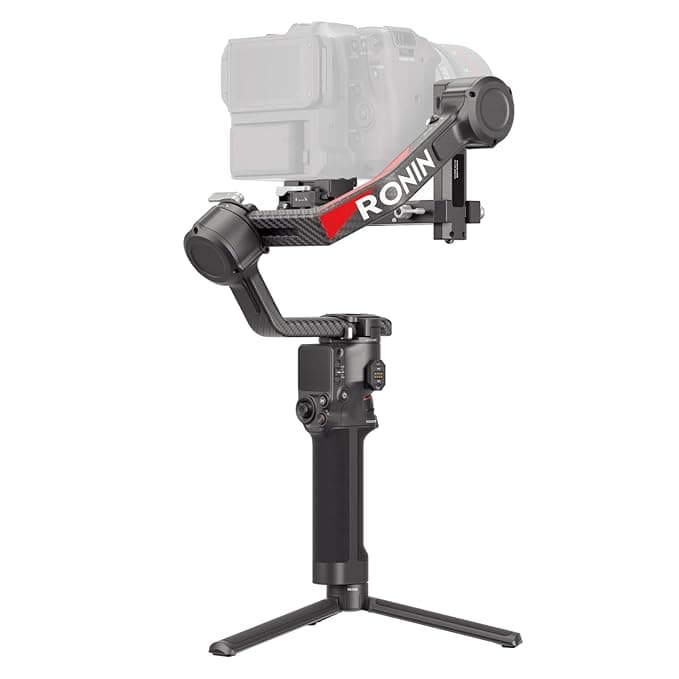

DJI RS 4 Pro

DJI RS 4 Pro is a flagship professional stabilizer built for film and television production. Designed to integrate with DJI Focus Pro, DJI Transmission, and advanced remote-control ecosystems, it combines stabilization, focusing, transmission, monitoring, and camera control into a unified workflow. Featuring a 4.5 kg payload capacity, LiDAR autofocus support, 2nd-gen native vertical shooting, and the 4th-gen RS stabilization algorithm, RS 4 Pro is engineered for advanced cinematic production environments.

4.5 kg

Payload Capacity

29 hrs

Max Battery Runtime

20 m

Max Focus Distance

76,800

LiDAR Ranging Points

Autofocus

LiDAR Intelligent Focusing

Supports DJI Focus Pro LiDAR with 76,800 ranging points, 20 m focus distance, and enhanced edge detection for reliable autofocus performance.

Stabilization

4th-Gen RS Stabilization

Optimized stabilization algorithm improves responsiveness, vertical shooting stability, and dynamic camera movement handling.

Control System

Professional Lens & Camera Control

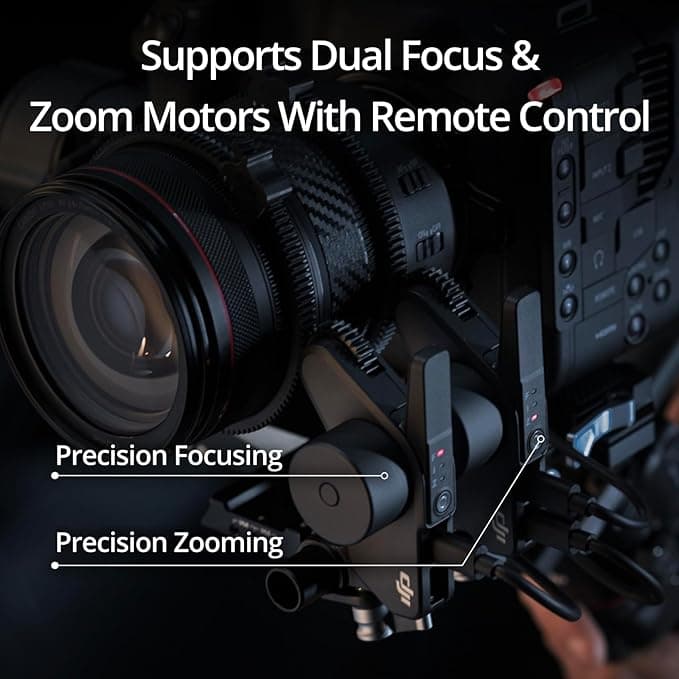

Supports wireless shutter control, lens zoom, focus adjustment, aperture control, and remote collaboration workflows.

Production Ecosystem

DJI PRO Ecosystem Integration

Compatible with DJI Transmission, Ronin Image Transmitter, Master Wheels, Focus Pro Hand Unit, and High-Bright Remote Monitor systems.

Next-Gen ActiveTrack Pro

ActiveTrack Pro uses Focus Pro LiDAR and AI algorithms to maintain stable subject tracking even when subjects are partially obscured or positioned at long distances.

High-Capacity Power System

The RS BG70 High-Capacity Battery Grip delivers up to 29 hours of runtime with 45W PD fast charging and 18W accessory power output support.

Product Name	DJI RS 4 Pro
Payload Capacity	4.5 kg (10 lbs)
Axis Arm Material	Carbon Fiber

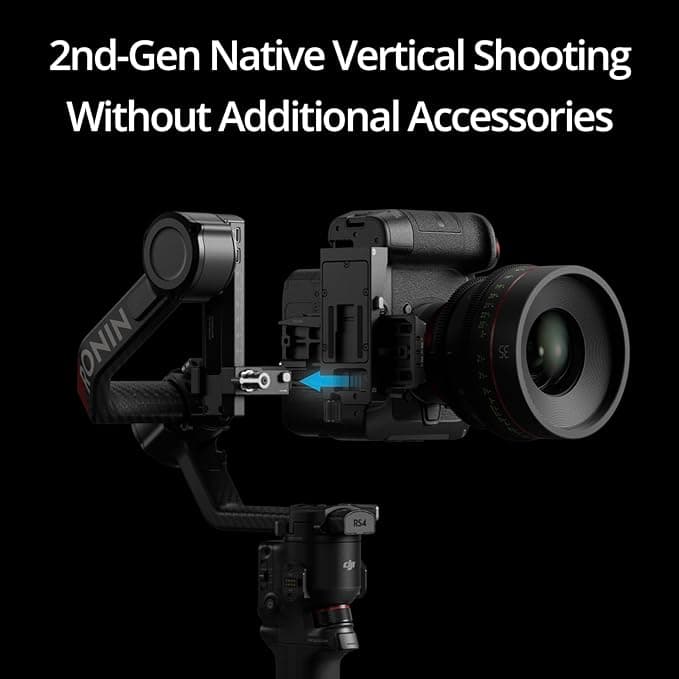

Vertical Shooting	2nd-Gen Native Vertical Shooting
Axis Locks	2nd-Gen Automated Axis Locks
Stabilization Algorithm	4th-Gen RS Stabilization Algorithm
Motor Torque Increase	20% Increase Across Three Axes
LiDAR Ranging Points	76,800
Max Focus Distance	20 m
LiDAR FOV	70°
LiDAR Refresh Rate	30 Hz
Focus Motor Speed Increase	30% Increase
Motor Latency	10 ms Lowest Latency
Rod Compatibility	15 mm Universal Rod
Communication Distance	160 m
Battery Runtime	29 Hours
Charging Specification	45W PD Fast Charging
Rapid Full Charge	2.5 Hours
Accessory Power Output	18W Max Output
