Name: Autel 5KG Dragonfish Lite with Z2
Price: 5748599 INR
Availability: InStock

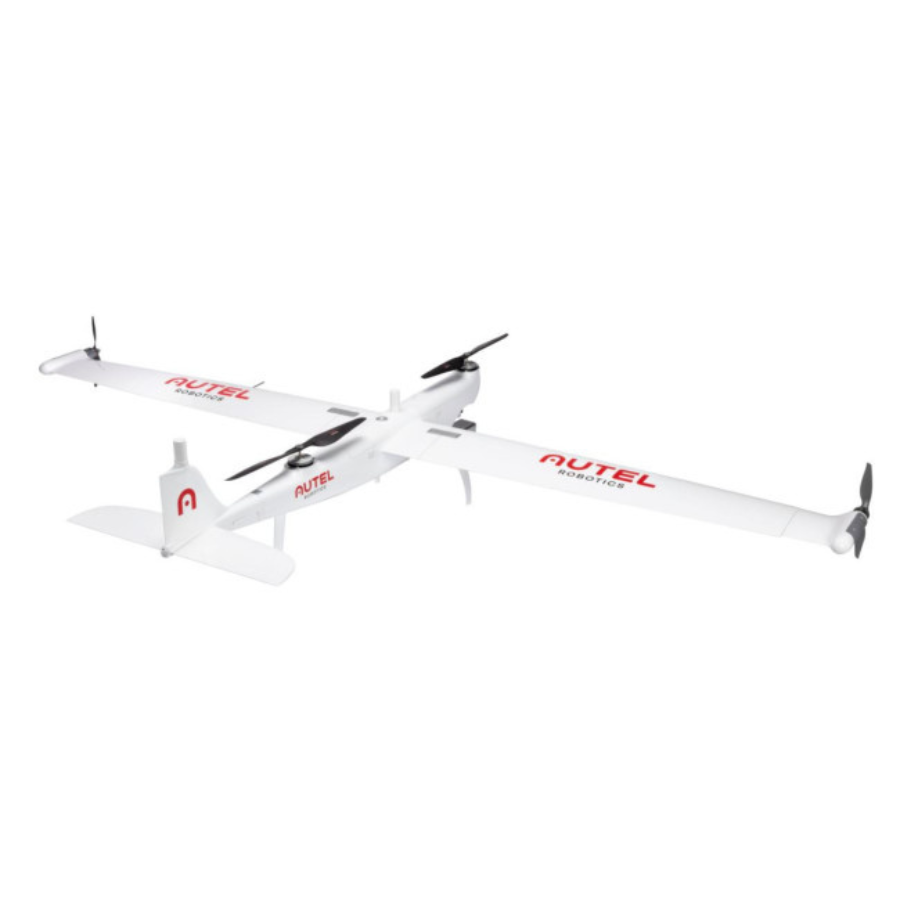

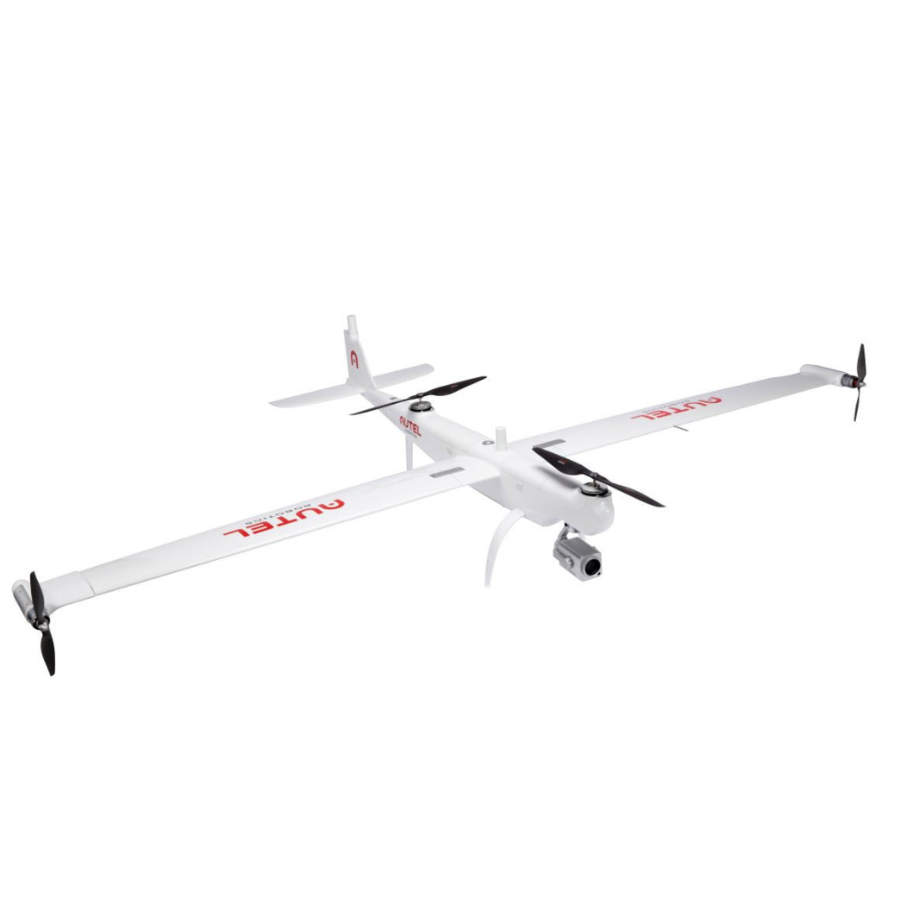

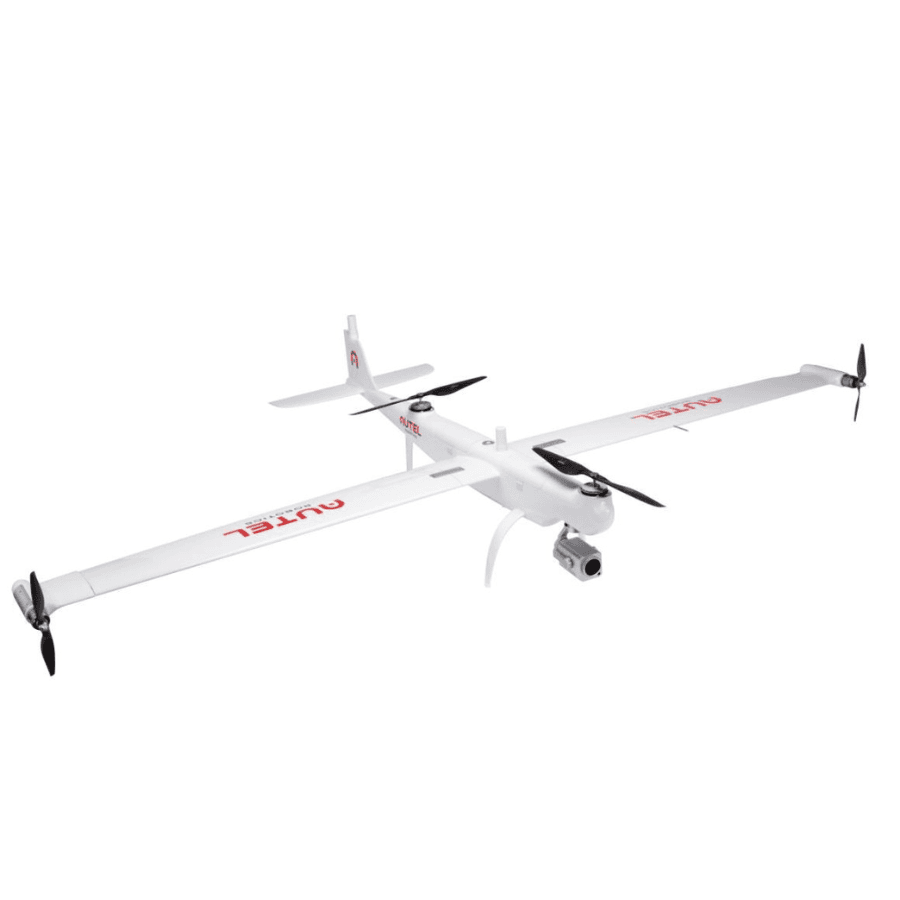

Autel 5KG Dragonfish Lite with Z2

The Autel 5KG Dragonfish Lite with Z2 Payload Camera is a multifunctional and powerful drone created for commercial and industrial uses. It produces amazing image quality with its 6K video and 32MP still photo capabilities. While sophisticated flight modes and obstacle avoidance technology ensure convenient mobility, they also guarantee a safe and effective flying experience. The Dragonfish Lite is a dependable and potent option for airborne data collecting and is ideal for surveying, mapping, and inspections.

SUPER LONG TENACITY

The innovative tilt-rotor design of the Dragonfish enhances operational simplicity, productivity, and efficiency. With a modular, waterproof, and intelligent build, the Dragonfish eliminates complex moving parts, ensuring dependability and easy maintenance. It supports a broad range of modular payloads, integrates powerful AI tracking, and is mission-ready straight out of the box. Its exceptional endurance—up to 75 minutes with a full payload—sets it apart from other VTOL competitors.

IDENTITY AND AUTONOMY

The Dragonfish comes equipped with advanced autonomous features that simplify complex mission tasks. Its user workflow is enhanced by intelligent algorithms that offer both consistency and ease of use during operations.

1-BUTTON TAKE-OFF AND LANDING

Launch and land with a single tap using intelligent automation, reducing manual effort and minimizing risk during critical phases of flight.

AI HIGH-SPEED TRACKING

Achieve real-time tracking of fast-moving subjects with precision, powered by onboard AI and advanced image recognition algorithms.

POINT OF INTEREST

Automatically orbit or focus on a designated subject or location, perfect for infrastructure inspection, event monitoring, or targeted surveillance missions.

ADAPTIVE TRACKING

Maintain consistent lock on moving objects, adjusting flight patterns dynamically to ensure stable and centered video capture during motion.

ADVANCED MISSION PLANNING

Streamline operations with intelligent route planning, 3D mapping, and flight simulation tools that help teams prepare for and execute complex missions efficiently.

SAFETY AND REDUNDANCY

Fly confidently with triple-redundant IMUs, backup communication links, and comprehensive obstacle avoidance systems, ensuring reliability in even the most challenging conditions.

Smart, Easy, and Effective — Autel 5KG Dragonfish Lite

The innovative tilt-rotor design of the Autel 5KG Dragonfish Lite ensures simple operation while maximizing performance and efficiency. With a modular and waterproof structure, it is built to endure rugged environments without complex moving parts. The Dragonfish Lite supports a wide array of modular payloads and features intelligent AI tracking, making it mission-ready straight out of the box. Its exceptional endurance of up to 180 minutes with payload sets it far ahead of the competition.

Key Performance Highlights

Up to 180 Minutes Flight Time

Experience unmatched aerial endurance with up to 3 hours of continuous flight time, allowing for extended missions without frequent battery swaps.

3-Minute Quick Assembly

Rapid deployment in just three minutes ensures fast response times in critical scenarios, from search and rescue to industrial inspections.

4K / 50X Optical Zoom

Capture detailed imagery from a distance with a powerful 4K camera and 50X optical zoom, ideal for high-altitude reconnaissance and inspection tasks.

Up to 108 KM/H Max Speed

Reach your target areas quickly with a maximum speed of 108 kilometers per hour, making it one of the fastest in its category.

18.6 Miles Transmission Range

Maintain a strong connection with an 18.6-mile transmission range, ensuring safe and reliable communication even across vast distances.

5-Second System Boot and Self Check

Be airborne faster with quick 5-second boot-up and automatic self-diagnostics, providing immediate readiness for urgent missions.

Smart, Easy, and Effective Autel 5KG Dragonfish Lite

The innovative tilt-rotor design of the Dragonfish makes operation simple while maximizing performance and effectiveness. It is modular, waterproof, intelligent, and dependable, with no complicated moving parts. Equipped with multiple modular payload options and advanced AI tracking, the Dragonfish is mission ready right out of the box. Its powerful capabilities are further enhanced by up to 180 minutes of flight time with payload, making it superior to many VTOL competitors.

Key Features

Up to 180 Minutes Flight Time – Ideal for long-endurance missions, ensuring extended aerial coverage without frequent battery swaps.
3 Minutes Quick Assembly – Rapid deployment system enables fast setup and reduced operational downtime in the field.
4K / 50x Optical Zoom – Delivers ultra-clear imaging from long distances, perfect for inspections and surveillance.
Up to 108km/h Max Speed – Capable of reaching high speeds, making it efficient for time-sensitive operations.
18.6 Miles Transmission Range – Maintain strong, reliable control and video transmission over extended distances.
5 Second System Boot and Self Check – Minimal startup time for instant readiness during urgent missions.
Multipurpose Z2 Payload Camera – Equipped with a high-quality camera offering 32MP stills and 6K video recording for professional-grade imaging.
Foldable Design – Compact and travel-friendly structure allows for easy transportation and storage.
Perfect for Mapping, Surveying, and Inspections – Built to deliver accurate geospatial and industrial data across applications.
Advanced Safety Features – Integrated intelligent flight modes and obstacle avoidance enhance operational safety and precision.
RTK Precision Positioning – Incorporates RTK (Real-Time Kinematic) for centimeter-level location accuracy.
Accessory Compatibility – Seamless integration with multiple payloads and accessories to enhance functionality.
Reliable Aerial Data Collection Platform – Designed to deliver consistent and high-quality results across diverse environments.
Available on Backorder – Currently high in demand; reserve your unit in advance to ensure priority delivery.

RTK Module

The Dragonfish is equipped with dual RTK modules for added redundancy. By combining these with the GNSS Base Station, it can achieve centimeter-level accuracy, precise headings, and robust anti-magnetic interference. This synergy improves flight safety, mission accuracy, and the quality of photogrammetry metadata.

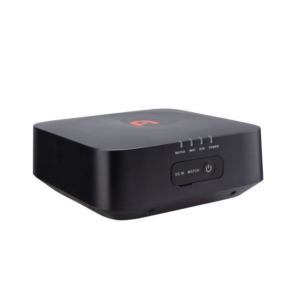

The GNSS Base Station from Autel Robotics supports all four major satellite systems and provides highly accurate image data.

Qualified Software Solutions — Autel Voyager

Specifically designed for industrial drone missions, Autel Voyager software supports advanced mission planning, intelligent AI tracking, historical flight data, and more. It is intuitive, powerful, and ensures complete control of every mission.

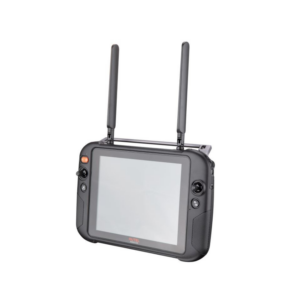

Ultra-Bright 9.7″ Ground Control Station

The 9.7-inch TFT-LCD touchscreen (2048×1536 resolution) provides excellent visibility with 1000 nits of brightness. The controller is dust- and water-resistant, offering durability in harsh environments. With an updated antenna design, it supports video transmission up to 18.6 miles (30 km). The system can operate up to 4.5 hours continuously on a single charge.

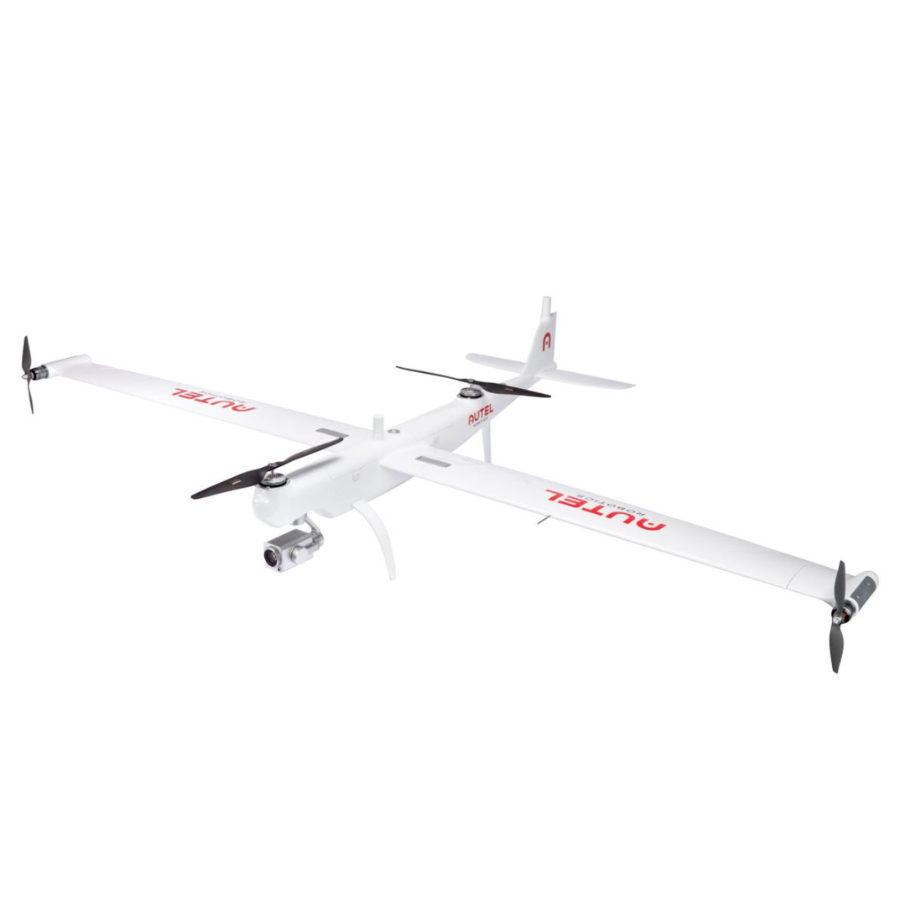

Autel Dragonfish Lite with Z2 Payload Camera

This version comes with the Z2 payload camera, making it ideal for professional-grade aerial imaging tasks. It's compact, efficient, and powerful for critical missions.

Small and Transportable

The Dragonfish Lite is lightweight and portable, allowing a one-person team to transport and deploy it with ease. It fits in most standard car trunks and can be fully assembled in under five minutes without tools, making it perfect for rapid deployment.

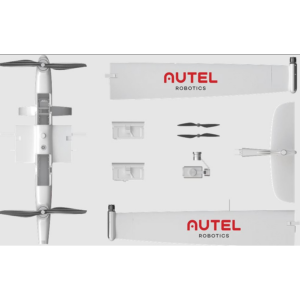

Autel 5KG Dragonfish Lite – In The Box

Aircraft body × 1
Base station × 1
Charger + AC line × 1
Base station antenna × 2
Base station tray × 1
Base station charger × 1
Repair tool kit × 1
Wing set × 1
9.7 inch ground station × 1
Tail × 1
Airspeed indicator cover × 1
Battery × 4 (actual quantity subject to purchased set)
Propeller blades × 2
Base station feeder × 2
Base station tripod × 1
USB Type-C cable × 1
Gimbal Camera (Z2 Payload Camera is a 4K / 20X Optical Zoom Camera)
Ground station lanyard × 1
Propeller holder × 1
TF card × 1
Documentation × 1 set (includes Dragonfish Standard, Base station, Charger, Battery quick guide, Disclaimer)

Why Choose the Autel 5KG DragonFish Lite with Z2?

The Autel 5KG DragonFish Lite with Z2 Payload Camera is a premier choice for professionals seeking a high-performance, compact drone for commercial and industrial applications. Its innovative tilt-rotor design, 5KG payload capacity, and Z2 camera with 6K video and 32MP stills deliver exceptional imaging for surveying, inspections, and mapping. With advanced AI-driven features, dual RTK modules for centimeter-level precision, and up to 75 minutes of flight time, the DragonFish Lite ensures reliable, efficient operations. Its portable, modular build and intuitive Autel Voyager software make it ideal for rapid deployment and mission success in diverse environments.

Superior Imaging – Z2 Payload Camera with 6K video and 32MP stills captures high-quality imagery for professional-grade applications.
Extended Endurance– Up to 75 minutes of flight time with payload supports prolonged missions and comprehensive data collection.
Rapid Deployment– 3-minute tool-free assembly and 5-second system boot with self-check ensure quick mission readiness.
High-Speed Performance– Reaches speeds up to 108km/h for efficient coverage of large areas in time-sensitive operations.
Long-Range Connectivity– 18.6-mile transmission range enables reliable real-time data streaming over vast distances.
Intelligent Automation– Features one-button takeoff/landing, AI high-speed tracking, Point of Interest, and Terrain Follow for streamlined missions.
Precision Navigation– Dual RTK modules provide centimeter-level accuracy and robust anti-magnetic interference for enhanced safety and photogrammetry.
Modular Versatility– Supports interchangeable payloads, ensuring flexibility across diverse mission requirements.
Advanced Safety– Triple-redundant IMUs, backup communication links, and obstacle avoidance ensure reliable operation in challenging conditions.
Portable Design– Lightweight, foldable structure fits in standard car trunks, with intuitive Autel Voyager software and a 9.7″ 1000-nit ground control station for seamless control.

Why Choose Everse for Your Autel 5KG DragonFish Lite with Z2?

Everse, India’s premier drone supplier, is the trusted choice for acquiring the Autel 5KG DragonFish Lite with Z2 Payload Camera, ensuring 100% authenticity and top-tier service. This advanced drone, featuring a 5KG payload capacity and the versatile Z2 camera, excels in professional applications such as surveying, infrastructure inspections, and environmental monitoring. With its intelligent tilt-rotor design, AI-driven tracking, and dual RTK modules for centimeter-level precision, the DragonFish Lite delivers exceptional aerial performance. Its long 75-minute flight time and modular system enhance efficiency for mission-critical operations. Everse guarantees genuine products, safeguarding your investment with expert customer support and dedicated drone repair services through specialized service centers, ensuring fast maintenance and minimal downtime — even after warranty expiration. Enjoy fast and secure delivery within 5-7 days across India through trusted logistics partners like Shree Tirupati Courier and DTDC Express. Whether you operate in agriculture, construction, or public safety, Everse ensures seamless procurement and long-term support, making it the ideal partner for professionals relying on the DragonFish Lite with Z2 for demanding field operations.

Specifications of Autel 5KG Dragonfish Lite with Z2

Ground Control Station

− ⊕ Video Transmission

Operating Frequency
902-928 MHz; 2.4-2.4835 GHz
Max Transmitting Distance
FCC: 10 km; CE / MIC / SRRC: 5 km

− ⊕ Data Transmission

Operating Frequency
5.725 – 5.755 GHz

− ⊕ Wi-Fi

Protocol
Wi-Fi Direct; Wireless; Display; 802.11a/g/n/ac; 2×2 MIMO
Operating Frequency
2.400–2.4835 GHz, 5.150–5.250 GHz, 5.650–5.755 GHz, 5.725–5.850 GHz

− ⊕ Battery

Type
Li-Po
Capacity
8200mAh
Voltage
11.4 V
Energy
93 Wh
Charging Time
120 min
Run Time
~3 hrs (Max brightness), ~4.5 hrs (Half brightness)

− ⊕ Storage

ROM
256GB + expandable (TF card)
Video Output Port
HDMI

− ⊕ Power & Temperature

USB-A Port Output
5V / 500mA
Operating Temperature Range
-20°C ~ 40°C
Charging Temperature Range
0°C ~ 45°C
Storage Temperature Range
<1 month: -20° to 60°C
1-3 months: -20° to 45°C
3-12 months: -20° to 30°C

− ⊕ GNSS & Dimensions

GNSS
GPS + GLONASS + Galileo
Dimensions
319×233×74 mm (antennas folded), 319×398×74 mm (antennas unfolded)
Weight
1987g
Note
Operating frequency varies by region. Follow local regulations.

Base Station

− ⊕ Satellite Receiving Frequency

GPS: L1, L2, L5
BeiDou: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B

− ⊕ Positioning Accuracy

Single Point (RMS): Horizontal: 1.5 m, Vertical: 3.0 m
RTK (RMS): Horizontal: 1 cm + 1 ppm, Vertical: 1.5 cm + 1 ppm
1 ppm Note: For every 1 km increase, accuracy reduces by 1 mm

− ⊕ Positioning Update Rate & Start Times

Update Rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz
Cold Start: < 40s
Hot Start: < 10s
Recapture: < 1s
Initialization Reliability: > 99.9%

− ⊕ Communication & Frequency Specs

Differential Format: RTCM 2.X / 3.X
Data Link: Image transmission, Wi-Fi
Image Transmission Frequency: 2.4000-2.4835 GHz, 902-928 MHz
EIRP:
- 902-928 MHz: FCC < 30 dBm
- 2.4 GHz: FCC < 30 dBm, SRRC/CE/MIC < 20 dBm
Wi-Fi Frequency: 5.125-5.25GHz, 5.650-5.755GHz, 5.725-5.850GHz
Wi-Fi EIRP:
- 5.125-5.25GHz: FCC/SRRC < 26 dBm
- 5.650-5.755GHz: MIC < 20 dBm
- 5.725-5.850GHz: FCC/SRRC < 26 dBm, CE < 14 dBm
